FAA Information Effective: May 15, 2025
All information is provided from the FAA unless otherwise noted.
(KMER) Castle Airport
No ratings | 4 reviews
Overview
Attendance:
Attended
Year-round,Mon-Fri/0800-1700
FAA
Runways:
13/31
Runway length: 11,802 ft (3,597 m)
Elevation:
190 ft (Surveyed)
Tower:
Atct Operated By Serco, Inc.
FAA
Tower Hrs: 0700-2100
FAA
Airspace:
CLASS D SVC 0700-2100; OTHER TIMES CLASS G
FAA
Fees:
Landing, Overnight, Ramp, Other
Click FBO link(s) below for details:
Click FBO link(s) below for details:
FBO Fee Details:
Gemini Flight SupportTimezone:
PDT (UTC-07:00)
Sunrise-Sunset:
5:44 am - 8:19 pm
Evening-Morning Civil Twilight:
8:49 pm
(Today)
(Today)
-
5:13 am
(Tomorrow)
(Tomorrow)
Minimum Fuel Prices:
$7.34
100LL (full)
$6.77
Jet-A (full)
$6.87
Jet-A-Premix/Prist (full)
Runway
Satellite
Sectional
FBOs
Submit New FBO
Gemini Flight Support
No ratings | 1 review
Services Offered:
Car Rental
$7.34 | 100LL | full
$6.77 | Jet-A | full
$6.87 | Jet-A-Premix/Prist | full
Location:
On field: CTR
Phone:
(209) 725-1455
Freq. Monitored:
UNICOM: 122.95
Fees:
Landing, Overnight, Ramp, Other
Flight Training
Submit New Flight School
Other businesses
Submit New Business
AOPA Travel Discounts
FlightBridge is the ultimate all-in-one travel booking platform built for the general aviation community. AOPA Members receive free access to FlightBridge with AOPA discounted rates automatically applied. Members save an average of 30% on hotel bookings! Learn more about FlightBridge HERE.
Local Food/Lodging/Activities
Local Attractions
Local Activities
Restaurants
Hotels and Lodging
Travel Discounts
Flying Clubs
Submit New Flying Club

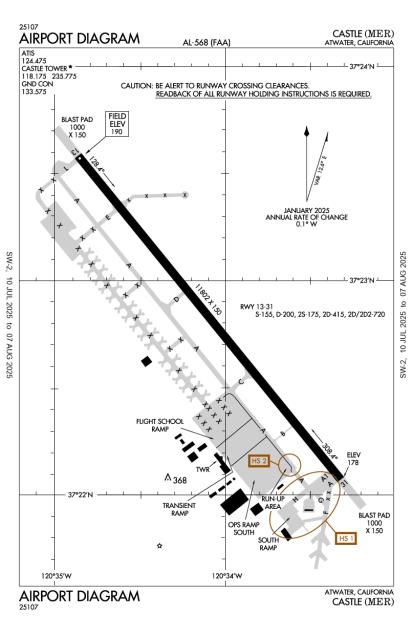

Runway 13/31
Dimensions:
11,802 × 150 ft
(3,597 × 46 m)
(3,597 × 46 m)
Weight Bearing Cap:
Single wheel: 155,000 lbs
Double wheel: 200,000 lbs
Double tandem: 415,000 lbs
Dual double tandem: 720,000 lbs
Double wheel: 200,000 lbs
Double tandem: 415,000 lbs
Dual double tandem: 720,000 lbs
Surface:
asphalt, concrete, no surface treatment, in good condition
Runway Edge Lights:
High
Comments:
1,000 Ft Paved Blast Pad Both Ends of Ry.
FAA
| Designator: | 13 | 31 |
| Elevation: | 190.4 ft | 177.7 ft |
| Heading: | 126° magnetic 141° true | 306° magnetic 321° true |
| Gradient: | 0.11% down | 0.11% up |
| Traffic Pattern: | Not provided. Assume LEFT traffic pattern | Right Pattern |
| Markings: | non-precision, in Good condition | precision, in Good condition |
| Approach Lighting: |
|
|
| Displaced Threshold: | n/a | n/a |
| ILS/LOC: | n/a | LOC/GS |
| Obstructions: | n/a | n/a |
| Comments: | n/a | Alsf1 Ry 13/31 Sequenced Flashing Lgts Out of service Indefly. FAA |
TFRs
Location: MER
Please verify all content below using the FAA TFR Search Site or with a flight briefer.
TFR count: 0
NOTAMs
Location: MER
Please verify all content below using the FAA NOTAM Search Site or with a flight briefer.
NOTAM count: 3
| Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
|---|---|---|---|
| 03/006 | 03/27/2025 1241 | RWY 31 SEQUENCED FLG LGT U/S | |
| 03/008 | 03/28/2025 1825 | 09/29/2025 2359 | SVC AUTOMATED WX BCST SYSTEM U/S |
| 05/001 | 05/01/2025 0510 | 06/15/2025 0648 | OBST TOWER LGT (ASR UNKNOWN) 373210.91N1202655.64W (11NM NNE MER) 455FT (100FT AGL) U/S |
Additional Remarks
Civilian and Military Training May Occasionally Cause Pattern Congestion.
Source:
FAA
Federal Aviation Administration
For Airport Info 209-385-7686, Extn 4180.
Source:
FAA
Federal Aviation Administration
For Cd When Air Traffic Control Tower is Clsd CTC Norcal Approach at 916-361-0516.
Source:
FAA
Federal Aviation Administration
Opposite End of Ry not Visible on Tkof. When Air Traffic Control Tower Clsd Opposite Direction Takeoffs and Landings are not Authorized.
Source:
FAA
Federal Aviation Administration
Ry 13/31 180 Degree Turns Prohibitied.
Source:
FAA
Federal Aviation Administration
Ry 31 Will be the Designated Calm Wind Ry (Wind 5 Knots or Less).
Source:
FAA
Federal Aviation Administration
Twy B Clsd to Acft Gtr Than 30000 Lbs.
Source:
FAA
Federal Aviation Administration
When Air Traffic Control Tower Clsd Max of 5 Acft Pmtd in VFR Tfc Pat At Any One Time and 2000 Ft Cig and 3 Mis Vis Rcmdd.
Source:
FAA
Federal Aviation Administration
Noise Abatement
Instrument Procedures
Data Cycle:
Operations & More Information
Lat/Long:
- 37.38048, -120.56819
- 37° 22′ 49.7″ N, 120° 34′ 5.5″ W
- 37° 22.829′ N, 120° 34.091′ W
ARTCC:
Oakland (ZOA)
App/Depart Control Facility:
NCT
Chart:
NACO: San Francisco Sectional
FSS:
Rancho Murieta (RIU)
1-800-WX-BRIEF
1-800-WX-BRIEF
Wind Indicator:
Lighted
Mag Var:
15E (2000)
NOTAM Facility:
Seg Circle:
Yes
Beacon:
Present
Lighting:
When Air Traffic Control Tower Clsd Actvt HIRL Ry 13/31; Alsf1 Rys 13 & 31 Freq 123.00; 3 Clicks On, 5 Clicks Increase Intensity, 7 Clicks Off. PAPI Rys 13 & 31 Oper Cont.
FAA
Pattern Altitude:
No data provided. Assume 1000 AGL.
Special Operations:
Communications Card
| Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
|---|---|---|---|
| Approach/Departure | 120.95 | Norcal | |
| ATIS | 124.475 | Castle | |
| AWOS-3 | (209) 725-0104 | Castle | |
| CTAF | 118.175 | Castle | |
| Ground Control | 133.575 | Castle | |
| Tower | 118.175 | Castle | |
| UNICOM | 122.95 | Castle |
Navaids
Services
Fuel:
100LL Low-Lead, Jet A, Jet A1
AM
Engine Repair:
Minor
AM
Airframe Repair:
Minor
AM
Bottled Oxygen:
None
Bulk Oxygen:
None
Customs:
None
Transportation:
Courtesy Transportation
AM
Activities:
On field aviation museum
AM
Camping On Field:
None Reported
Aircraft & Activity
Webcams
METARs
TAFs
Contact Addresses
Airport Manager
George Clover
Merced, CA 95340-4180
(209) 617-5399 (Office)
Owner
Merced County
Merced, CA 95340
(209) 385-7686 (Office)
Remarks:
Community & Economic Development
FAA
Desk Phone 209-385-7686, Extn 4180.
FAA
