FAA Information Effective: Jun 12, 2025
All information is provided from the FAA unless otherwise noted.
Attended

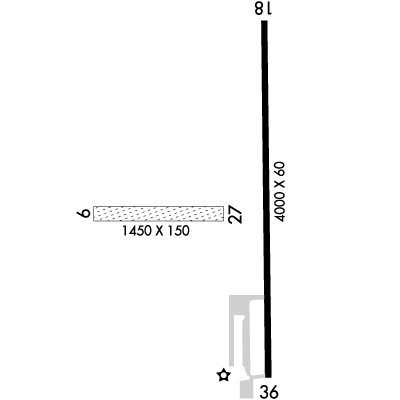

Designator: | 18 | 36 |
Elevation: | 698.2 ft | 674.4 ft |
Heading: | 182° magnetic 180° true | 362° magnetic 360° true |
Gradient: | 0.6% down | 0.6% up |
Traffic Pattern: | Left Pattern | Left Pattern |
Markings: | non-precision, in Fair condition | non-precision, in Fair condition |
Approach Lighting: |
|
|
Displaced Threshold: | n/a | n/a |
ILS/LOC: | n/a | n/a |
Obstructions: | Road, Both-Sides, 29 ft high, 790 ft from end, 20:1 clearance slope | Road, Both-Sides, 15 ft high, 520 ft from end, 21:1 clearance slope |
Comments: | n/a | Crops 120 Ft R of Cntrln At Thr; Road 245 Ft R of Cntrln. Tie-Down Area 100 Ft Fm Rwy End 130 Ft L of Cntrln. FAA |
Designator: | 09 | 27 |
Elevation: | 678.9 ft | 684.2 ft |
Heading: | 091° magnetic 089° true | 271° magnetic 269° true |
Gradient: | 0.37% up | 0.37% down |
Traffic Pattern: | Left Pattern | Left Pattern |
Markings: | none | none |
Approach Lighting: | n/a | n/a |
Displaced Threshold: | n/a | n/a |
ILS/LOC: | n/a | n/a |
Obstructions: | n/a | n/a |
Comments: | Orange Cones. FAA | Apch Slope 35:1 to Dthr. FAA Orange Cones. FAA |
Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
---|---|---|---|
06/109 | 06/05/2025 0216 | 07/20/2025 0216 | OBST TOWER LGT (ASR 1305025) 411052.27N0870230.13W (15.5NM NNE RZL) 927FT (255FT AGL) U/S |
05/730 | 05/27/2025 0126 | 07/11/2025 0126 | OBST TOWER LGT (ASR 1275938) 410031.70N0871922.20W (7.3NM WNW RZL) 955.1FT (270.0FT AGL) U/S |
Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
---|---|---|---|
AWOS-3P | 119.175T (219) 866-7167 | ||
Clearance Delivery Phone | (630) 906-8921 | Chicago ARTCC | |
CTAF | 122.8 | ||
UNICOM | 122.8 |
