FAA Information Effective: May 15, 2025
All information is provided from the FAA unless otherwise noted.
Attended

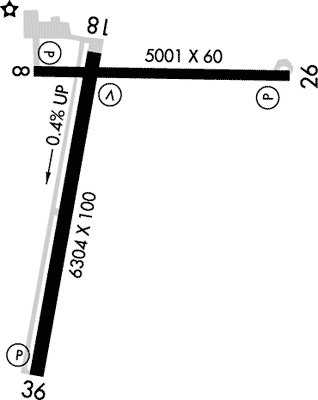

Designator: | 18 | 36 |
Elevation: | 3,678.6 ft | 3,705.3 ft |
Heading: | 183° magnetic 190° true | 003° magnetic 010° true |
Gradient: | 0.42% up | 0.42% down |
Traffic Pattern: | Left Pattern | Left Pattern |
Markings: | non-precision, in Good condition | non-precision, in Good condition |
Approach Lighting: |
|
|
Displaced Threshold: | n/a | n/a |
ILS/LOC: | n/a | n/a |
Obstructions: | Road, Both-Sides, 30 ft high, 672 ft from end, 15:1 clearance slope | Hill, 210 ft Right ft of center, 28 ft high, 946 ft from end, 26:1 clearance slope |
Comments: | n/a | n/a |
Designator: | 08 | 26 |
Elevation: | 3,682.8 ft | 3,689 ft |
Heading: | 083° magnetic 090° true | 263° magnetic 270° true |
Gradient: | 0.12% up | 0.12% down |
Traffic Pattern: | Not provided. Assume LEFT traffic pattern | Not provided. Assume LEFT traffic pattern |
Markings: | basic, in Good condition | basic, in Good condition |
Approach Lighting: |
|
|
Displaced Threshold: | n/a | n/a |
ILS/LOC: | n/a | n/a |
Obstructions: | Road, Both-Sides, 25 ft high, 599 ft from end, 15:1 clearance slope | n/a |
Comments: | n/a | n/a |
Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
---|---|---|---|
05/001 | 05/14/2025 1741 | 06/13/2025 2359 | OBST TOWER LGT (ASR 1024239) 380740.50N1023153.40W (8.2NM ENE LAA) 3906.8FT (255.9FT AGL) U/S |
02/006 | 02/28/2025 0311 | NAV VOR/DME U/S | |
02/001 | 02/07/2025 1309 | RWY 26 PAPI U/S | |
12/010 | 12/28/2024 0615 | NAV VOR/DME NOT MNT | |
4/5806 | 01/19/2024 1918 | IAP SOUTHEAST COLORADO RGNL, LAMAR, CO.
VOR RWY 36, AMDT 1D...
S-36 MDA 4220/HAT 514 ALL CATS.
2401191918-26… | |
01/017 | 01/24/2025 0444 | 07/24/2025 2359 | COM GND COM OUTLET NOT AVBL |
Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
---|---|---|---|
ASOS | 135.625T (719) 336-3854 | ||
Clearance Delivery Phone | (303) 651-4257 | Denver ARTCC | |
CTAF | 122.8 | ||
UNICOM | 122.8 |
Name: | Operated by: | Site: | Facing: |
---|---|---|---|
Lamar Municipal Webcam | Airport | NW of Field | Varies |
