FAA Information Effective: Jul 10, 2025
All information is provided from the FAA unless otherwise noted.
Unattended

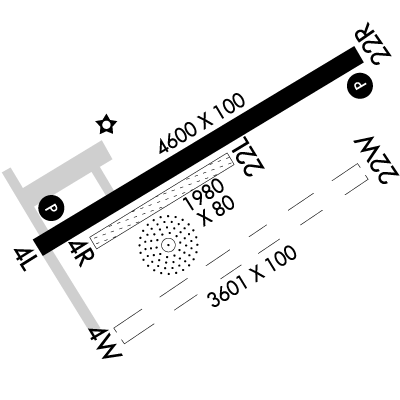

Designator: | 04L | 22R |
Elevation: | 367.6 ft | 365.2 ft |
Heading: | 038° magnetic 059° true | 218° magnetic 239° true |
Gradient: | 0.05% down | 0.05% up |
Traffic Pattern: | Right Pattern | Left Pattern |
Markings: | non-precision, in Good condition | non-precision, in Good condition |
Approach Lighting: |
|
|
Displaced Threshold: | n/a | n/a |
ILS/LOC: | n/a | n/a |
Obstructions: | Trees, 220 ft Left ft of center, 30 ft high, 201 ft from end | Trees, Both-Sides, 31 ft high, 360 ft from end, 5:1 clearance slope |
Comments: | n/a | n/a |
Designator: | 04W | 22W |
Elevation: | 352.1 ft | 352.1 ft |
Heading: | 035° magnetic 056° true | 215° magnetic 236° true |
Traffic Pattern: | Right Pattern | Not provided. Assume LEFT traffic pattern |
Markings: | buoy, in Good condition | buoy, in Good condition |
Obstructions: | n/a | n/a |
Comments: | n/a | n/a |
Designator: | 04R | 22L |
Elevation: | 363.8 ft | 363.5 ft |
Heading: | 038° magnetic 059° true | 218° magnetic 239° true |
Gradient: | 0.02% down | 0.02% up |
Traffic Pattern: | Right Pattern | Not provided. Assume LEFT traffic pattern |
Markings: | none, in Fair condition | none, in Fair condition |
Approach Lighting: | n/a | n/a |
Displaced Threshold: | n/a | n/a |
ILS/LOC: | n/a | n/a |
Obstructions: | Trees, 65 ft Right ft of center, 30 ft high | Trees, 70 ft Left ft of center, 23 ft high |
Comments: | n/a | n/a |
Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
---|---|---|---|
4/3866 | 02/12/2024 1548 | IAP NENANA MUNI, NENANA, AK.
RNAV (GPS) RWY 4L, AMDT 1B...
LNAV CATS C/D MDA 1000/HAT 632, VIS CAT C/D 1 3/4… Show more | |
07/017 | 07/23/2025 0249 | 09/27/2025 1500 | COM REMOTE COM OUTLET 121.5, 122.5 U/S |
07/018 | 07/23/2025 0258 | 09/27/2025 1500 | NAV VORTAC NOT MNT |
Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
---|---|---|---|
Approach/Departure | 125.35 | Fairbanks | |
ASOS | 125.2T (907) 832-5689 | ||
CTAF | 122.1 |
