FAA Information Effective: Jul 10, 2025

All information is provided from the FAA unless otherwise noted.

(KTNX) Tonopah Test Range

No ratings | No reviews
Tonopah, NV
(702) 295-8313

Overview

Military (USAF)
Attendance:

Attended

All
FAA
Runways:
14/32

Runway length: 12,001 ft (3,658 m)

Elevation:
5,550 ft (Surveyed)
Tower:
Tower Hrs: OPR H24 FM 1300Z++ MON THRU 0305Z++ FRI, CLSD WKEND AND HOL; OTR TIMES BY NOTAM.
FAA
Airspace:
Unknown
Fees:
None
Timezone:
PDT (UTC-07:00)
Sunrise-Sunset:
5:45 am - 8:04 pm
Evening-Morning Civil Twilight:
8:33 pm
(Today)
 -
5:16 am
(Tomorrow)
NOTAMs
TFRs
Kneeboard Format
Webcams (0)
Nearby Airports
Favorite Airports

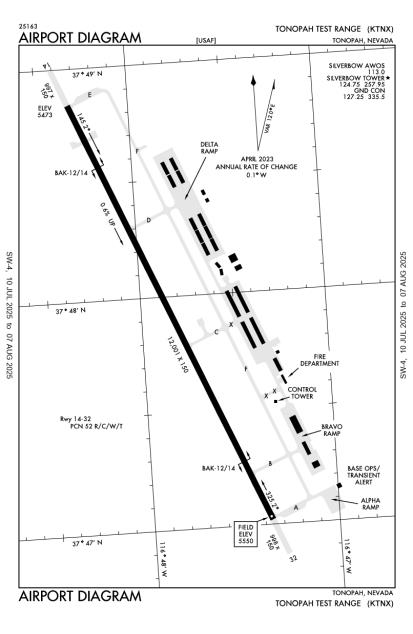

Airport Diagram
Click to open full-size diagram

Distance Calculator

Distance From:

Distance To:

Tonopah Test Range


Plan Flight

FBOs and Other Businesses

Submit New FBO
There are no businesses listed as operating at this airport.

AOPA Travel Discounts
Powered by FlightBridge

FlightBridge is the ultimate all-in-one travel booking platform built for the general aviation community. AOPA Members receive free access to FlightBridge with AOPA discounted rates automatically applied. Members save an average of 30% on hotel bookings! Learn more about FlightBridge HERE.
Hotels
Login/Create AOPA account
Rental Cars
Login/Create AOPA account
Airlines
Login/Create AOPA account

Local Food/Lodging/Activities

There are no attractions currently list for this airport. Please contact the AOPA Aiport Directory Administrator at airportdirectory@aopa.org if you know of any that should be added.

Flying Clubs

Submit New Flying Club
There are no flying clubs listed as operating at this airport. View AOPA resources for starting a flying club.

Runway 14/32

Dimensions:
12,001 × 150 ft
(3,658 × 46 m)
Weight Bearing Cap:
n/a
Surface:
concrete, no surface treatment, condition not reported
Runway Edge Lights:
High
Comments:
n/a
Designator:1432
Elevation: 5,473.4 ft 5,550.3 ft
Heading: 141° magnetic
157° true 		321° magnetic
337° true
Gradient: 0.64% up 0.64% down
Traffic Pattern: Left Pattern Not provided. Assume LEFT traffic pattern
Markings:n/an/a
Approach Lighting:
  • Approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-I Config.
  • Visual glide slope: 4-Light/Left-Side PAPI
  • Approach: 2400ft/High-Intensity/Sequenced Flashers, Cat-I Config.
  • Visual glide slope: 4-Light/Left-Side PAPI
Displaced Threshold:n/an/a
ILS/LOC: LOC/GS LOC/GS
Obstructions:n/an/a
Comments:
Bak-14 Bak-12B(B) (1500 Ft).
FAA
Bak-14 Bak-12B(B) (1600 Ft).
FAA

TFRs

Location: TNX
Please verify all content below using the FAA TFR Search Site or with a flight briefer.
TFR count: 0
No TFRs were found for KTNX. Please verify using the FAA TFR Search Site or with a flight briefer.

NOTAMs

Location: TNX
Please verify all content below using the FAA NOTAM Search Site or with a flight briefer.
NOTAM count: 4
Number:Start Date:
(UTC)		End Date:
(UTC)		Condition:
07/15/2025 1457 10/10/2025 2359
RWY 14/32 NAVAID BOTH ILS ARE OTS
07/15/2025 1458 10/10/2025 2359
AERODROME SVC ATIS UHF 341.7MHZ OUT OF SERVICE
07/15/2025 1456 10/10/2025 2359
OBST ERECT 73FT AGL TOWER AT N3746441 W11647240 (1M SW OF RWY )
07/15/2025 1458 10/10/2025 2359
AERODROME CLOSED TO ALL NON-BASE ASSIGNED AIRCRAFT. OPERATIONS AUTHORIZED FOR OFFICIAL BUSINESS ONLY WITH PR…
Show more
SEE EXPANDED LIST

Additional Remarks

Bash Migratory Bird Act Oct- Mar Phase Ii.
Source:
FAA
Federal Aviation Administration
Ctn: Hi Per Mil Operations R4809A.
Source:
FAA
Federal Aviation Administration
Fluid-De-Ice.
Source:
FAA
Federal Aviation Administration
Jasu-3 (Am32A-60A).
Source:
FAA
Federal Aviation Administration
Misc: Ad Ver Tkof/Ldg Na.
Source:
FAA
Federal Aviation Administration
Misc: Twy E Vor Rcvr Ck Point Unusbl; No Classified Mtrl Storage.
Source:
FAA
Federal Aviation Administration
Oil- O-148.
Source:
FAA
Federal Aviation Administration
Ppr - Coord Thru Poc/Sponsor.
Source:
FAA
Federal Aviation Administration
Rstd: All Tran Acft Must Obtain Prior Permission Required Prior to Arr. Acft Must Adhere to Prior Permission Required Arr Block +/- 30 Min of Sked Ldg.
Source:
FAA
Federal Aviation Administration
Rstd: Delta Ramp Sfc Marking Nstd.
Source:
FAA
Federal Aviation Administration
Rstrd: Airfield Lctd Within R4809; CTC 98 Range Wing/Xpr D348-5537/C702-653-5537; 72 Hr Prior Permission Required - Airfield Operations D384-5937/C702-653-5937.
Source:
FAA
Federal Aviation Administration
Rstrd: Downward Thrust Jet Blast Rstd Fm Full Pwr First 500 Ft Rwy 14 & 32.
Source:
FAA
Federal Aviation Administration
Tran Alert: 1300-0300Z++ Wkday; Clsd Wkend & Hol; Fleet Svc & Maint Unavbl.
Source:
FAA
Federal Aviation Administration
Wx Brief Aft Operations Hrs - 25 Ows Davis Monthan Air Force Base D228-6598/6599/C520-228-6598/6599.
Source:
FAA
Federal Aviation Administration

Noise Abatement

No noise abatement procedures provided by airport manager. Please check Additional Remarks section for FAA generated noise abatement procedures.

Instrument Procedures

Data Cycle:
 Effective: 7/10/25 - 8/7/25
AIRPORT DIAGRAM
CHART SUPPLEMENT (A/FD)
ESSAA ONE (RNAV)
JAYSN ONE (RNAV)
LEAHI ONE (RNAV)
RANGE TWO (RNAV)
SILVER ONE
STOFF TWO
TONOPAH THREE (RNAV)
TUMBE ONE (RNAV)
ILS OR LOC/DME RWY 14
ILS OR LOC/DME RWY 32
RNAV (GPS) RWY 14
RNAV (GPS) RWY 32
VOR/DME OR TACAN RWY 14
VOR/DME OR TACAN RWY 32
VOR/DME Z RWY 14
VOR/DME Z RWY 32
TAKEOFF MINIMUMS
Download Selected:
or
Use subject to Terms and Conditions

Operations & More Information

Lat/Long:
  • 37.79887, -116.78075
  • 37° 47′ 55.9″ N, 116° 46′ 50.7″ W
  • 37° 47.932′ N, 116° 46.845′ W
ARTCC:
Los Angeles (ZLA)
App/Depart Control Facility:
Unknown
Chart:
NACO: Las Vegas Sectional
FSS:
Reno (RNO)
1-800-WX-BRIEF
Wind Indicator:
Yes
Mag Var:
16E (2005)
NOTAM Facility:
RNO
Seg Circle:
Yes
Beacon:
Not Present
Lighting:
Actvt Alsf-1 Rwy 14 & 32; PAPI Rwy 14 & 32; HIRL Rwy 14/32 - 257.95. Alsf-1 Rwy 14 & 32 Hi Intst Only.
FAA
Pattern Altitude:
Rectangular 7000 Ft MSL 1500 Ft AGL; Ovhd 7500 Ft MSL 2000 Ft AGL.
FAA
Special Operations:

Communications Card

Type:Frequency / Phone:Sector / Comments:Call Sign:
Ground Control 127.25 Silverbow
PTD - Pilot to Dispatcher 119.45 Silverbow
Tower 124.75 Silverbow

Navaids

TPH - Tonopah
Frequency: 116.0
38° 1′ 50.3″ N, 117° 2′ 0.6″ W
TPH to airport:
 122° | 18.4 nm
OAL - Coaldale
Frequency: 117.7
38° 0′ 11.7″ N, 117° 46′ 13.6″ W
OAL to airport:
 087° | 48.6 nm

Services

No services are available at this airport.

Aircraft & Activity

To view based aircraft and activity information for this airport visit the FAA's Airport Operations site: https://aspm.faa.gov/opsnet/sys/Airport.asp.

Webcams

There are no webcams listed for KTNX. If you are aware of any webcams at or near the airport, please contact your airport manager or email airportdirectory@aopa.org.
Webcams are managed by their respective owners and may not always be available for viewing.

METARs

TAFs

Contact Addresses

Airport Manager

Vernon Gabbard Jr
Sandia Lab Po Box 871
Tonopah, NV 89049
(702) 295-8313 (Office)

Owner

US Air Force
Hq Air Combat Command
Langley Afb, VA 23665
(804) 764-3120 (Office)
