FAA Information Effective: Jul 10, 2025
All information is provided from the FAA unless otherwise noted.

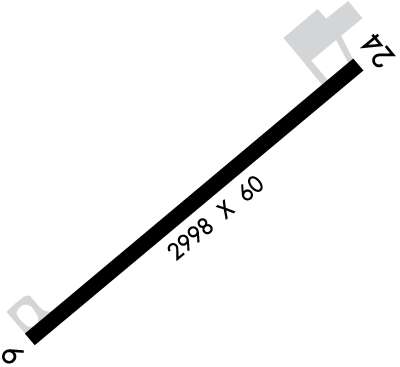

Designator: | 06 | 24 |
Elevation: | 3.9 ft | 3.9 ft |
Heading: | 059° magnetic 050° true | 239° magnetic 230° true |
Gradient: | n/a | n/a |
Traffic Pattern: | Left Pattern | Left Pattern |
Markings: | non-precision, in Good condition | non-precision, in Good condition |
Approach Lighting: | n/a | n/a |
Displaced Threshold: | n/a | n/a |
ILS/LOC: | n/a | n/a |
Obstructions: | Brush, 135 ft Left ft of center, 11 ft high, 202 ft from end, 1:1 clearance slope | Trees, 141 ft Right ft of center, 23 ft high, 438 ft from end, 10:1 clearance slope |
Comments: | 6 Ft Brush 0-200 Ft Fm Thr 83 Ft R of Cntrln; 10 Ft Bushes 0-200 Ft Fm Thr 157 Ft L of Cntrln. FAA | 15 Ft Scrub Trees 151 Ft Fm Thr 103 Ft R of Cntrln; 14 Ft Scrub Trees 0-200 Ft Fm Thr 60 Ft L of Cntrln. FAA |
Designator: | H1 |
Elevation: | 4 ft |
Markings: | basic, in Good condition |
Obstructions: | Trees, 34 ft Left ft of center, 15 ft high, 185 ft from end, 12:1 clearance slope |
Comments: | Apch Slope for Northeast Heli Apch; and Approach Slope for Southwest Heli Approach is 10:1 Due to 17 Ft Trees 176 Ft from Heli Offset 14 Ft Right. FAA |
Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
---|---|---|---|
07/325 | 07/21/2025 1835 | 09/04/2025 1835 | OBST TOWER LGT (ASR 1006891) 345745.00N0761657.00W (17.8NM WSW W95) 264.8FT (254.9FT AGL) U/S |
Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
---|---|---|---|
Approach/Departure | 119.75 | Cherry Point | |
Clearance Delivery Phone | (703) 771-3587 | Washington ARTCC | |
CTAF | 122.9 |
