FAA Information Effective: May 15, 2025
All information is provided from the FAA unless otherwise noted.

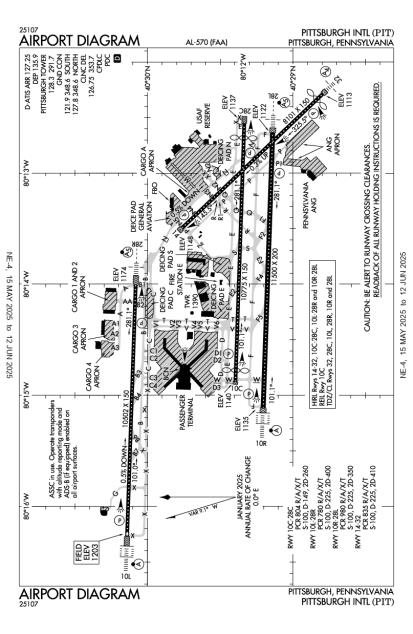

(KPIT) Pittsburgh International Airport
No ratings | 4 reviews
Overview
Attendance:
Attended
Year-round, 7 Days a Week,All
FAA
Elevation:
1,203 ft (Surveyed)
Tower:
Assc In Use. Operate Transponders With Altitude Reporting Mode And Ads-B (If Equipped) Enabled On All Airport Surfaces.
FAA
Call Iron City Command Post Prior To Entry South Ramp.
FAA
Mil Ops Hrs: NML DUTY HRS TUE-SAT
FAA
Primary Approach Control Hrs: 24
FAA
Primary Depart. Control Hrs: 24
FAA
Tower Hrs: 24
FAA
Airspace:
B
Fees:
Landing, Overnight, Parking, Ramp, Other
Click FBO link(s) below for details:
Click FBO link(s) below for details:
FBO Fee Details:
Atlantic AviationTimezone:
EDT (UTC-04:00)
Sunrise-Sunset:
5:53 am - 8:47 pm
Evening-Morning Civil Twilight:
9:19 pm
(Today)
(Today)
-
5:20 am
(Tomorrow)
(Tomorrow)
Minimum Fuel Prices:
$9.89
100LL (full)
$6.76
Jet-A (full)
Runway
Satellite
Sectional
FBOs
Submit New FBO
Atlantic Aviation
2 ratings | 2 reviews
Services Offered:
Car Rental
$9.89 | 100LL | full
$6.76 | Jet-A | full
Location:
On field: NE
Phone:
(412) 472-6700
Freq. Monitored:
UNICOM: 122.95
ASRI: 129.825
ASRI: 129.825
Fees:
Landing, Overnight, Parking, Ramp, Other
Flight Training
Submit New Flight School
Other businesses
Submit New Business
AOPA Travel Discounts
FlightBridge is the ultimate all-in-one travel booking platform built for the general aviation community. AOPA Members receive free access to FlightBridge with AOPA discounted rates automatically applied. Members save an average of 30% on hotel bookings! Learn more about FlightBridge HERE.
Local Food/Lodging/Activities
Local Attractions
Local Activities
Restaurants
Hotels and Lodging
Travel Discounts
(412) 264-9940
(412) 264-7011
(800) 762-0097
(412) 262-1322
(412) 329-7003
(412) 264-3116
(412) 262-2920
PIT
Downtown Pittsburgh PA
Scally's Golf Center
Drive In Theater
Robert Morris University
Montour Heights Country Club
Hunan Chinese Restaurant
Selma's Texas Barbeque
Hyeholde Restaurant
Eggs N'at
Pittsburgh Transportation Group
Flying Clubs
Submit New Flying Club
Runway 10R/28L
Dimensions:
11,500 × 200 ft
(3,505 × 61 m)
(3,505 × 61 m)
Weight Bearing Cap:
Single wheel: 100,000 lbs
Double wheel: 225,000 lbs
Double tandem: 350,000 lbs
Double wheel: 225,000 lbs
Double tandem: 350,000 lbs
Surface:
concrete, grooved, in good condition
Runway Edge Lights:
High
Comments:
Pcr Value: 980/R/A/X/T
FAA
| Designator: | 10R | 28L |
| Elevation: | 1,134.8 ft | 1,121.9 ft |
| Heading: | 101° magnetic 092° true | 281° magnetic 272° true |
| Gradient: | 0.11% down | 0.11% up |
| Traffic Pattern: | Not provided. Assume LEFT traffic pattern | Left Pattern |
| Markings: | precision, in Good condition | precision, in Good condition |
| Approach Lighting: |
|
|
| Displaced Threshold: | n/a | n/a |
| ILS/LOC: | ILS | ILS |
| Obstructions: | Trees, 782 ft Left ft of center, 91 ft high, 3,272 ft from end, 33:1 clearance slope | Trees, 348 ft Left ft of center, 150 ft high, 4,954 ft from end, 31:1 clearance slope |
| Comments: | n/a | n/a |
Runway 10C/28C
Dimensions:
10,775 × 150 ft
(3,284 × 46 m)
(3,284 × 46 m)
Weight Bearing Cap:
Single wheel: 100,000 lbs
Double wheel: 149,000 lbs
Double tandem: 260,000 lbs
Double wheel: 149,000 lbs
Double tandem: 260,000 lbs
Surface:
asphalt, concrete, grooved, in fair condition
Runway Edge Lights:
High
Comments:
Pcr Value: 804/R/A/X/T
FAA
| Designator: | 10C | 28C |
| Elevation: | 1,140.2 ft | 1,136.6 ft |
| Heading: | 101° magnetic 092° true | 281° magnetic 272° true |
| Gradient: | 0.03% down | 0.03% up |
| Traffic Pattern: | Not provided. Assume LEFT traffic pattern | Not provided. Assume LEFT traffic pattern |
| Markings: | precision, in Good condition | precision, in Good condition |
| Approach Lighting: |
|
|
| Displaced Threshold: | 465 ft | 602 ft |
| ILS/LOC: | n/a | n/a |
| Obstructions: | n/a | n/a |
| Comments: | n/a | n/a |
Runway 10L/28R
Dimensions:
10,502 × 150 ft
(3,201 × 46 m)
(3,201 × 46 m)
Weight Bearing Cap:
Single wheel: 100,000 lbs
Double wheel: 225,000 lbs
Double tandem: 400,000 lbs
Double wheel: 225,000 lbs
Double tandem: 400,000 lbs
Surface:
asphalt, concrete, grooved, in good condition
Runway Edge Lights:
High
Comments:
Pcr Value: 780/R/A/X/T
FAA
| Designator: | 10L | 28R |
| Elevation: | 1,202.9 ft | 1,174.1 ft |
| Heading: | 101° magnetic 092° true | 281° magnetic 272° true |
| Gradient: | 0.27% down | 0.27% up |
| Traffic Pattern: | Left Pattern | Left Pattern |
| Markings: | precision, in Good condition | precision, in Good condition |
| Approach Lighting: |
|
|
| Displaced Threshold: | n/a | n/a |
| ILS/LOC: | ILS | ILS |
| Obstructions: | n/a | Antenna, 909 ft Right ft of center, 107 ft high, 4,165 ft from end, 37:1 clearance slope |
| Comments: | Alsf2/Ssalr is A Dual Mode System & Controlled by Air Traffic Control Tower & Remote Monitored. FAA | n/a |
Runway 14/32
Dimensions:
8,101 × 150 ft
(2,469 × 46 m)
(2,469 × 46 m)
Weight Bearing Cap:
Single wheel: 100,000 lbs
Double wheel: 225,000 lbs
Double tandem: 410,000 lbs
Double wheel: 225,000 lbs
Double tandem: 410,000 lbs
Surface:
concrete, grooved, in good condition
Runway Edge Lights:
High
Comments:
Pcr Value: 835/R/A/X/T
FAA
| Designator: | 14 | 32 |
| Elevation: | 1,147.6 ft | 1,113.4 ft |
| Heading: | 145° magnetic 136° true | 325° magnetic 316° true |
| Gradient: | 0.42% down | 0.42% up |
| Traffic Pattern: | Left Pattern | Left Pattern |
| Markings: | precision, in Good condition | precision, in Good condition |
| Approach Lighting: |
|
|
| Displaced Threshold: | n/a | 335 ft |
| ILS/LOC: | n/a | ILS/DME |
| Obstructions: | Pole, 510 ft Left ft of center, 24 ft high, 451 ft from end, 10:1 clearance slope | n/a |
| Comments: | n/a | n/a |
TFRs
Location: PIT
Please verify all content below using the FAA TFR Search Site or with a flight briefer.
TFR count: 0
NOTAMs
Location: PIT
Please verify all content below using the FAA NOTAM Search Site or with a flight briefer.
NOTAM count: 41 (Partial list shown. Expand to see full list HERE.)
| Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
|---|---|---|---|
| 06/007 | 06/02/2025 1201 | 06/03/2025 2359 | RWY 10C/28C CLSD |
| 05/067 | 05/04/2025 1303 | 09/08/2025 2355 | AD AP WINDCONE FOR RWY 10L U/S |
| 01/911 | 01/30/2025 1842 | TWY E BTN TWY N AND APCH END RWY 28C WIP CONST ADJ NORTH SIDE TAX SPEED RESTRICTED 10MPH 2402221954 | |
| M0001/25 | 02/10/2025 1851 | 09/30/2025 2359 | US AIR FORCE RESERVE RAMP SOUTH ACCESS CLSD |
| 5/2639 | 03/13/2025 1149 | ODP PITTSBURGH INTL, PITTSBURGH, PA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5...
ADD TAKE… | |
| 03/357 | 03/31/2025 1823 | 06/30/2025 1600 | NAV ILS RWY 10L LOC/GP U/S |
| 5/5079 | 05/02/2025 1752 | 08/20/2025 1752 | IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 10L, AMDT 26...
ILS RWY 10L (CAT II-III), AMDT 26....
RA… |
| 05/384 | 05/28/2025 1609 | RWY 28L RAI LGT U/S | |
Additional Remarks
Acft Using Twy 'N' Prohibited to Stop on Overpass Area Due to Possible Emergency Evacuation Hazard.
Source:
FAA
Federal Aviation Administration
Ang Acft Must CTC Tanker 303.0/Ftr Operations 293.7 Before Crossing Rwy 28L to Obtain Clnc to Enter.
Source:
FAA
Federal Aviation Administration
Ang: Opr 1130-2030Z++Mon-Fri Excp Hol. (Clsd Ev Oth Mon). No Tran De-Ice Capability on Ang Ramp.
Source:
FAA
Federal Aviation Administration
Atct is Authorized to Have Acft Line-Up & Wait on Rys 28L At Twy 'P' Durg Hrs of Darkness. the Specific Ry Shall be Used Only for Departures & the Intxn Must be Vsb Fm Atct.
Source:
FAA
Federal Aviation Administration
Deer & Birds on & In vicinity of Arpt.
Source:
FAA
Federal Aviation Administration
Fuel: A++ Provided by Ang and Afrc.(Mil).
Source:
FAA
Federal Aviation Administration
Ldg Fee.
Source:
FAA
Federal Aviation Administration
Military: Caution: Bash Phase II Operations in Effect 1 Jul - 30 Sep Annually. Unless Msn Requirements Direct Otherwise, Flights Should not be Sked Within +/-1Hr of Ss/Sr. Tran Aircrew Should Req Bird Watch Cond Fr Afrc (Pitt Ops) on 252.1 or Ang Operations (Steel Ctl) on 311.0. Aircrew Will be Informed by Steel Control or Pitt Operations (As Applicable) If Current Bwc is Other Than Low Regardless of Bash Phase.
Source:
FAA
Federal Aviation Administration
Ppr/Offl Bus Min 48 Hr CTC Airfield Mgmt Dsn 277 8163, C412 474 8163. Ltd Tran Svc. Airfield Mgt Nml Duty Hrs 1300 0100++ Mon, Wed, Fri, 1300-0500++ Tue, Thu, Exc Hol. Unit Training Assembly 1300 2100Z++Sat. Tran Acft Must Have Appvl of 911Og/Cc for Prior Permission Required Dur Off Duty Hr. No Svc Avbl for Space Avbl Pax Dur Off Duty Hr. Call Pitt Comd Post (Iron City) by Rdo 15 Min Prior to Arrival. Alfd Mgmt Does not Issue or Stor Comsec. Comsec Stor CTC Comd Post Dsn 277 8146.
Source:
FAA
Federal Aviation Administration
Pushback Clnc Required Fr Gates A100 and A101 At Cargo A. CTC Gc. Pushback Fm These Gates Enters Twy N.
Source:
FAA
Federal Aviation Administration
Service-Fluid: Lpox Lhnit.
Source:
FAA
Federal Aviation Administration
Service-Jasu: (Ang) (A/M32A-86) (Am 32-95; (Afrc - 2(A/M32-86 (Am32-95).
Source:
FAA
Federal Aviation Administration
Service-Oil: O-156.
Source:
FAA
Federal Aviation Administration
Service-Tran Alert: No Priority Basis.
Source:
FAA
Federal Aviation Administration
Terml Taxilanes E of Concourses A & B Restrd to Group 3 Acft & Smaller.
Source:
FAA
Federal Aviation Administration
Trml Apn Uncontrolled. Pushback Pilot Descretion. Do not Exit Trml Apn At Twy C1, C4, V3, V4, D1, W. CTC Gc When Hldg At Twy C2, C3, V1, V2, V5, V6, D2, D3.
Source:
FAA
Federal Aviation Administration
Twy Aa No Turn-Off Onto Twy A for Acft Wingspan 171 Ft or Greater Exc Prior Permission Required (412) 472-5630.
Source:
FAA
Federal Aviation Administration
Twy G Intxn At Ry 10L/28R Right Turn Na.
Source:
FAA
Federal Aviation Administration
Noise Abatement
Instrument Procedures
Data Cycle:
Operations & More Information
Lat/Long:
- 40.49142, -80.23269
- 40° 29′ 29.1″ N, 80° 13′ 57.7″ W
- 40° 29.485′ N, 80° 13.962′ W
ARTCC:
Cleveland (ZOB)
App/Depart Control Facility:
Unknown
Chart:
NACO: Detroit Sectional
FSS:
Altoona (AOO)
1-800-WX-BRIEF
1-800-WX-BRIEF
Wind Indicator:
Lighted
Mag Var:
09W (2020)
NOTAM Facility:
Seg Circle:
No
Beacon:
Present
Lighting:
No lighting reported.
Pattern Altitude:
No data provided. Assume 1000 AGL.
Special Operations:
Communications Card
| Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
|---|---|---|---|
| Approach | 124.15 | 001-090 | Pittsburgh |
| Approach | 133.7 | 181-270 | Pittsburgh |
| Approach | 121.25 | 271-360 | Pittsburgh |
| Approach IC | 123.95 | 091-180 | Pittsburgh |
| ASOS | (215) 798-0218 | Pittsburgh | |
| CD PRE TAXI CLNC | 126.75 | Pittsburgh | |
| CLASS B | 124.15 | 001-090 | Pittsburgh |
| CLASS B | 123.95 | 091-180 | Pittsburgh |
| CLASS B | 133.7 | 181-270 | Pittsburgh |
| CLASS B | 121.25 | 271-360 | Pittsburgh |
| D-ATIS | 127.25 | ARR | Pittsburgh |
| D-ATIS | 135.9 | DEP | Pittsburgh |
| Departure | 124.75 | NORTH | Pittsburgh |
| Departure | 119.35 | SOUTH | Pittsburgh |
| Departure(S) | 125.275 | Pittsburgh | |
| Emergency | 121.5 | Pittsburgh | |
| Ground Control | 127.8 | NORTH | Pittsburgh |
| Ground Control | 121.9 | SOUTH | Pittsburgh |
| OPS | 36.35 | Pittsburgh | |
| Tower | 128.3 | Pittsburgh | |
| UNICOM | 122.95 | Pittsburgh |
Navaids
Services
Fuel:
100LL Low-Lead, Jet A
AM
Engine Repair:
Minor
AM
Airframe Repair:
Minor
AM
Bottled Oxygen:
None
Bulk Oxygen:
None
Customs:
International Landing Rights
AM
Transportation:
Courtesy Transportation, Limousine, Public Transportation, Shuttle Service
AM
Activities:
Airline Services
AM
Camping On Field:
None Reported
Aircraft & Activity
Webcams
METARs
TAFs
Contact Addresses
Airport Manager
Christina A. Cassotis
Pittsburgh, PA 15231-0370
(412) 472-3509 (Office)
Owner
Allegheny County Airport Authority
Pittsburgh, PA 15231-0370
(412) 472-3500 (Office)
