FAA Information Effective: May 15, 2025
All information is provided from the FAA unless otherwise noted.
(KIAB) Mc Connell Air Force Base
No ratings | No reviews
Wichita, KS
(316) 759-3835
Overview
Attendance:
Attended
Year-round, 7 Days a Week,All
FAA
Elevation:
1,372 ft (Surveyed)
Tower:
Pmsv Not Avbl When Twr Clsd.
FAA
Remote Briefing Svc Avbl: Kansas City Metro - 369.9.
FAA
Ta31 Mobile Radar Operates 24 Hours.
FAA
Mil Ops Hrs: 24
FAA
Tower Hrs: 24
FAA
Airspace:
D
Fees:
None
Timezone:
CDT (UTC-05:00)
Sunrise-Sunset:
6:10 am - 8:46 pm
Evening-Morning Civil Twilight:
9:17 pm
(Today)
(Today)
-
5:39 am
(Tomorrow)
(Tomorrow)
Runway
Satellite
Sectional
FBOs and Other Businesses
Submit New FBO
AOPA Travel Discounts
FlightBridge is the ultimate all-in-one travel booking platform built for the general aviation community. AOPA Members receive free access to FlightBridge with AOPA discounted rates automatically applied. Members save an average of 30% on hotel bookings! Learn more about FlightBridge HERE.
Local Food/Lodging/Activities
Local Attractions
Local Activities
Restaurants
Hotels and Lodging
Travel Discounts
Flying Clubs
Submit New Flying Club

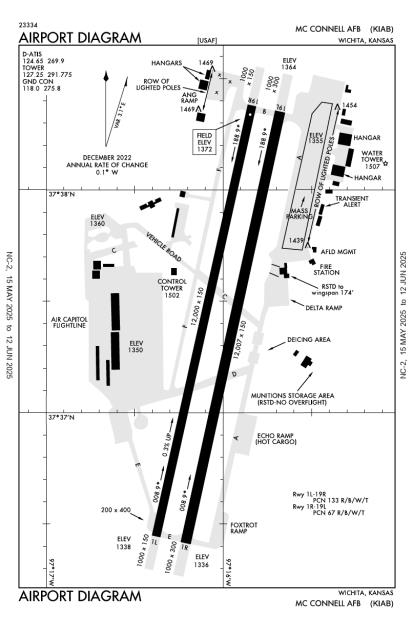

Runway 01R/19L
Dimensions:
12,007 × 150 ft
(3,660 × 46 m)
(3,660 × 46 m)
Weight Bearing Cap:
n/a
Surface:
asphalt, grooved, in fair condition
Runway Edge Lights:
High
Comments:
First 1000' Concrete; Mid 10000' Asphalt.
FAA
Mid 9500' Grooved.
FAA
| Designator: | 01R | 19L |
| Elevation: | 1,336 ft | 1,364.4 ft |
| Heading: | 008° magnetic 012° true | 188° magnetic 192° true |
| Gradient: | 0.24% up | 0.24% down |
| Traffic Pattern: | Left Pattern | Left Pattern |
| Markings: | precision, in Fair condition | precision, in Fair condition |
| Approach Lighting: |
|
|
| Displaced Threshold: | n/a | n/a |
| ILS/LOC: | n/a | n/a |
| Obstructions: | n/a | n/a |
| Comments: | n/a | n/a |
Runway 01L/19R
Dimensions:
12,000 × 150 ft
(3,658 × 46 m)
(3,658 × 46 m)
Weight Bearing Cap:
n/a
Surface:
asphalt, concrete, no surface treatment, condition not reported
Runway Edge Lights:
High
Comments:
n/a
| Designator: | 01L | 19R |
| Elevation: | 1,337.6 ft | 1,371.5 ft |
| Heading: | 008° magnetic 012° true | 188° magnetic 192° true |
| Gradient: | 0.28% up | 0.28% down |
| Traffic Pattern: | Left Pattern | Left Pattern |
| Markings: | precision | precision |
| Approach Lighting: |
|
|
| Displaced Threshold: | n/a | n/a |
| ILS/LOC: | ILS | ILS |
| Obstructions: | n/a | n/a |
| Comments: | n/a | n/a |
TFRs
Location: IAB
Please verify all content below using the FAA TFR Search Site or with a flight briefer.
TFR count: 0
NOTAMs
Location: IAB
Please verify all content below using the FAA NOTAM Search Site or with a flight briefer.
NOTAM count: 15 (Partial list shown. Expand to see full list HERE.)
| Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
|---|---|---|---|
| 05/06/2025 1806 | 07/25/2025 2359 | INSTRUMENT PROCEDURES NA: RNAV (GPS) Y RWY 1L (AMDT 5); RNAV (RNP) Z RWY 1L (ORIG); RNAV (RNP Z RWY 19R (ORI… | |
| 05/27/2025 2051 | 07/30/2025 2359 | MAPA RAMP, (2) TWO BALL PARK OBSTRUCTION LIGHTS UNLIT. 27 MAY 20:51 2025 UNTIL 30 JULY 23:59 2025 | |
| 05/27/2025 2047 | 07/30/2025 2359 | (3) THREE DRILLING TOWERS (MAX HEIGHT 50 FT) LOCATED NORTH-WEST OF TWY F AND 470 FT WEST FROM RWY 19R/01L. M… | |
| 05/27/2025 2101 | 07/30/2025 2359 | TWY B BETWEEN TWY F AND RWY 01L/19R CLSD LGTD AND BARRICADED. 27 MAY 21:01 UNTIL 30 JULY 23:59 2025 | |
| 05/29/2025 2116 | 07/29/2025 2359 | MAPA CAUTION: PARKING SPOT C11 ON THE MAPA IS CLOSED DUE TO OPEN FUEL PIT COVER. FOUR LOW PROFILE BARRICADES… | |
| 05/27/2025 2107 | 07/30/2025 2359 | SOUTHWEST 7/5 RDM UNLIT ON RWY 01L/19R. 27 MAY 21:07 2025 UNTIL 30 JULY 2359 2025 | |
| 05/27/2025 2103 | 07/30/2025 2359 | TWY F CLSD NORTH OF TWY C. LTGD AND BARRICADED. 27 MAY 21:03 2025 UNTIL 30 JULY 23:59 2025 | |
| 04/28/2025 1320 | 06/12/2025 0901 | AERODROME [DOD FLIP CHG] ILS OR LOC RWY 19R CHART ERROR: CHG HEKLO MISSED APCH HLDG INBD HEADING TO 005° AND… | |
Additional Remarks
(Contact Title) Mr. Lenzi Can be Reached At Richard.Lenzi@Us.Af.Mil
Source:
FAA
Federal Aviation Administration
Caution: Acft May Appear to be Left of Crs When Flying Inst Approach to Rwy 01L in Imc Due to Parl Rwy 01R Approach Lgt.
Source:
FAA
Federal Aviation Administration
Caution: Backup Wx Obsn View Ltd, Rstd Fr 020-140 by Flightline Fac. Atc Pers Iaw Cooperative Wx Watch Will Alert Wx Pers on Any Unreported Wx Cond That Could Afct Flt Safety. Altn Wx Lctn View Ltd, Rstd Fr 210-320 by Bldgs.
Source:
FAA
Federal Aviation Administration
Caution: Rwy 01R/19L Edge Lights Lctd More Than 10 Ft Fr Edge of Usable Rwy Sfc.
Source:
FAA
Federal Aviation Administration
Fuel: A++
Source:
FAA
Federal Aviation Administration
Jasu: 4(M32A-86) (Ma-1A) (Mc-1A) 2(Mc-2A) 5(Md-4) 3(Am32-95)
Source:
FAA
Federal Aviation Administration
Kansas Ang Ramp Clsd. No Acft Operations Without Airfield Mgmt Apvl.
Source:
FAA
Federal Aviation Administration
Misc: Acft Rescue Fire Fighting (Arff) Capabilities Has Perm Reduced Level of Svc (Rls) for USAF Cat 5 and 6/Nfpa Cat 9 and 10 (Acft Type: C5, Vc-25, Kc-10 and E-4).
Source:
FAA
Federal Aviation Administration
Nvd Trng Every Mon and Wed 0300-0830Z++ (Mon, Wed 2100-0230L). Rwy 19L-01R Unavbl for Acft not Participating in Nvd Ops. VFR Pat Will be Clsd for All Tfc Exc Participating Acft.
Source:
FAA
Federal Aviation Administration
Oil: O-133-148-156 Soap.
Source:
FAA
Federal Aviation Administration
Pmsv Metro: Wx Svc Avbl H24 Unless Airfield Clsd At Dsn 743-3707/4311, C316-759-3707/4311. An/Fmq-19 Awos in Use, Augmented by Human Obsn When Nec. Vis of Airfield Rstd Fr Base Wx Operations Nne-Southeast Dur Manual Augmentation by Wx Forecaster. CTC Tacc Dsn 779-0308, C618-229-0308, or 26 Ows Dsn 331-2651/2652/2653, C318-529-2641/2652/2653 Dur Wx Flt Closure or Evac. When Possible, Provide 2 Hr Advance Ntc for All Rqr Briefs.
Source:
FAA
Federal Aviation Administration
Ppr V962-5271.
Source:
FAA
Federal Aviation Administration
Req for Prior Permission Required Taken No Eryr Than 7 Days Prior to Planned Msn. Ppr's Valid +/- 1 Hr Sked Prior Permission Required Slot Times. Prior Permission Required Incl Sked Dv, Airevac, Amc and Sam Msn Due Ltd Ramp Space, Tran Acft Prk Lt. CTC Amops Dsn 743-3701, C316-759-3701. Inbd Acft with Dv CTC Comd Post 30 Min Prior to ETA with Block Time.
Source:
FAA
Federal Aviation Administration
Rstd: Inbd Acft with Dv CTC Comd Post 30 Min Prior to ETA with Block Time. Do not Ovft Munitions Stor Area 2500' E of Midpoint Rwy 01R-19L. All Inbd Pax/Cargo Acft Must CTC Comd Post No Later Than 30 Min Prior to Ldg.Acft Opr Rstd Dur Bird Watch Cond Moderate (Tkof or Ldg Perms Only When Dep and Arr Rte Avoid Ident Bird Act. No Lcl Ifr/VFR Tfc Pat Act) and Severe (Tkof and Ldg Proh Wo Og/Cc Apvl), CTC Atis, Twr, Comd Post, or Ptd/Amops for Current Bird Watch Cond.
Source:
FAA
Federal Aviation Administration
Rstd: No Haz Cargo Prk Avbl - Ltd Prk for Internally Loaded Explosives.
Source:
FAA
Federal Aviation Administration
Rstd: Practice Approach (VFR/Ifr) Rstd to Kc-135, Kc-46, A10, C-12, T-1, C-130, Uh-60 and T-38 Acft Only 0400-1200Z++.
Source:
FAA
Federal Aviation Administration
Rwy 01L-19R Fully Grooved. Rwy 01R-19L: First 1000 Ft and Last 1000 Ft- Conc; Mid 10,000 Ft- Asph; Mid 9500 Ft Grooved.
Source:
FAA
Federal Aviation Administration
Rwycc not Rpt.
Source:
FAA
Federal Aviation Administration
Soap Services not Avbl for Transient Acft.
Source:
FAA
Federal Aviation Administration
Stor of Classified Material not Avbl At Airfield Mgmt, CTC Comd Post Dsn 743-3251, C316-759-3251, 24 Hr Prior.
Source:
FAA
Federal Aviation Administration
Tran Alert: No Deicing Capability for C-5, C-17, B-747, Kc or Dc-10.
Source:
FAA
Federal Aviation Administration
Tran Alert: No Priority Basis. Ltd Tran Maint Svc Avbl 1300-0500Z++ Wkd; 1400-0000Z++ Sat-Sun; Clsd Fed Hol.
Source:
FAA
Federal Aviation Administration
Tran Alert: Prk Space, Svcg, and Ron Cannot be Assured Without Prior Coord Dsn 743-3701, C316-759-3701. Gnd Svcg not Avbl When Lightning Within 5 Nm.
Source:
FAA
Federal Aviation Administration
Trans Alert: Tran Maint not Avbl Outside Publ Hr. Trans Svc Limited. Weapons/Guns, Arm/De-Arm/Safeing not Avbl.
Source:
FAA
Federal Aviation Administration
RESTRICTED. MILITARY AIRPORT. PRIOR PERMISSION REQUIRED. CONTACT BASE OPS MANAGER 316/652-3702
Source:
AM
Airport Manager
Noise Abatement
Instrument Procedures
Data Cycle:
Operations & More Information
Lat/Long:
- 37.62312, -97.26763
- 37° 37′ 23.2″ N, 97° 16′ 3.5″ W
- 37° 37.387′ N, 97° 16.058′ W
ARTCC:
Kansas City (ZKC)
App/Depart Control Facility:
ICT
Chart:
NACO: Wichita Sectional
FSS:
Wichita (ICT)
1-800-WX-BRIEF
1-800-WX-BRIEF
Wind Indicator:
Yes
Mag Var:
04E (2015)
NOTAM Facility:
Seg Circle:
No
Beacon:
Present
Lighting:
No lighting reported.
Pattern Altitude:
No data provided. Assume 1000 AGL.
Special Operations:
Communications Card
| Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
|---|---|---|---|
| Approach | 134.85 | EAST OF IAB ABV 4000 FT | Wichita |
| Approach | 134.8 | EAST OF IAB, 4000 FT & BLW | Wichita |
| Approach | 126.7 | WEST OF ICT | Wichita |
| Approach/Departure | 134.8 | Wichita | |
| D-ATIS | 124.65 | Mc Connell | |
| Departure | 134.8 | 4000 FT & BLW | Wichita |
| Departure | 134.85 | ABV 4000 FT | Wichita |
| Emergency | 121.5 | Mc Connell | |
| Ground Control | 118.0 | Mc Connell | |
| Tower | 127.25 | Mc Connell |
Navaids
Services
Fuel:
None
Engine Repair:
Major
AM
Airframe Repair:
Major
AM
Bottled Oxygen:
High/Low
AM
Bulk Oxygen:
High/Low
AM
Customs:
None
Transportation:
None Reported
AM
Activities:
None Reported
Camping On Field:
None Reported
Aircraft & Activity
Webcams
METARs
TAFs
Contact Addresses
Airport Manager
Chief Airfield Management
Wichita, KS 67221
(316) 759-3835 (Office)
Owner
USAF
Wichita, KS 67221
