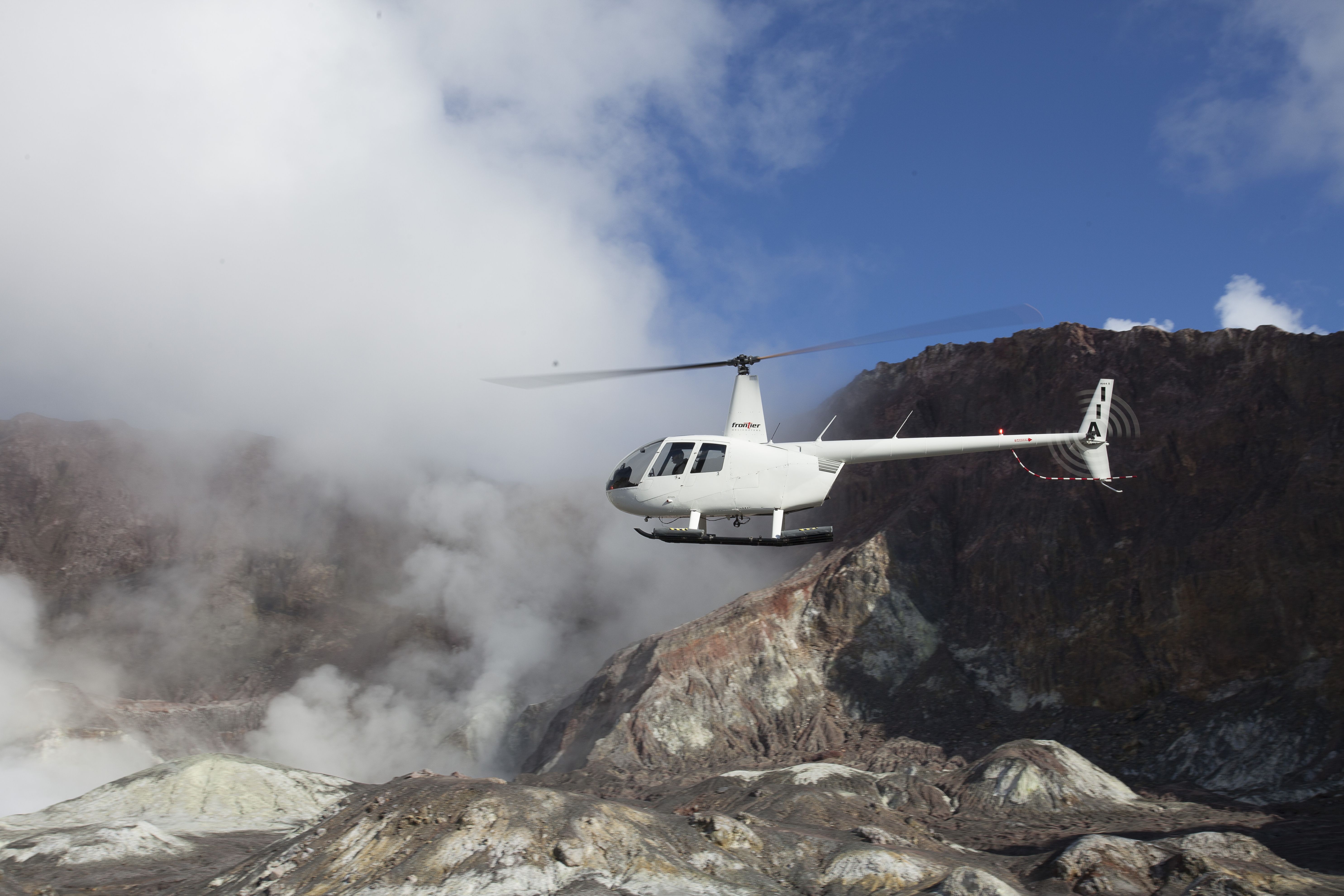

Robinson R44 Raven II

Overview

• With decent cruise speeds, reasonable fuel burn, and straightforward maintenance—even though it is pretty much the only choice for someone wanting a piston, four-place helicopter—the R44 is not a compromise. Assuming you can stomach those costly life-limited parts, you’ll be on your way to building that pad in your backyard and being the envy of suburbanites everywhere.

  Ramp Appeal: Robinson R44

  Robinson R44 Cadet



Specifications

• Powerplant

  Lycoming IO-540, 245 hp for takeoff, 205 hp continuous

• Propellers

• Length

  38 ft 3 in

• Height

  10 ft 9 in

• Wingspan

• Wing Area

• Wing loading

• Power loading

• Cabin Width

  50.5 in

• Empty Weight

  1,505 lb

• Maximum gross weight

  2,500 lb

• Useful load

  995 lb

• Payload with full fuel

  716 lb

• Fuel capacity

  29.5 gal plus 17 gal auxiliary

• Baggage capacity

Performance

• Takeoff distance ground roll

• Takeoff distance over 50-ft obstacle

• Rate of climb sea level

  1,000 fpm

• Service ceiling

  14,000 ft

• Landing distance over 50-ft obstacle

• Landing distance ground roll

• Cruise speed/endurance w/45-min rsv, std fuel (fuel consumption, ea engine) @ 75% power, best economy

  109 KTAS

• Range

Limiting and Recommended Airspeeds

• V_X

• V_Y

• V_NE

• V_S1

• V_SO

For more information, contact Robinson Helicopter Co at or via https://robinsonheli.com/r44-specifications/

All specifications are based on manufacturer's calculations. All performance figures are based on standard day, standard atmosphere, sea level, gross weight conditions unless otherwise noted.
