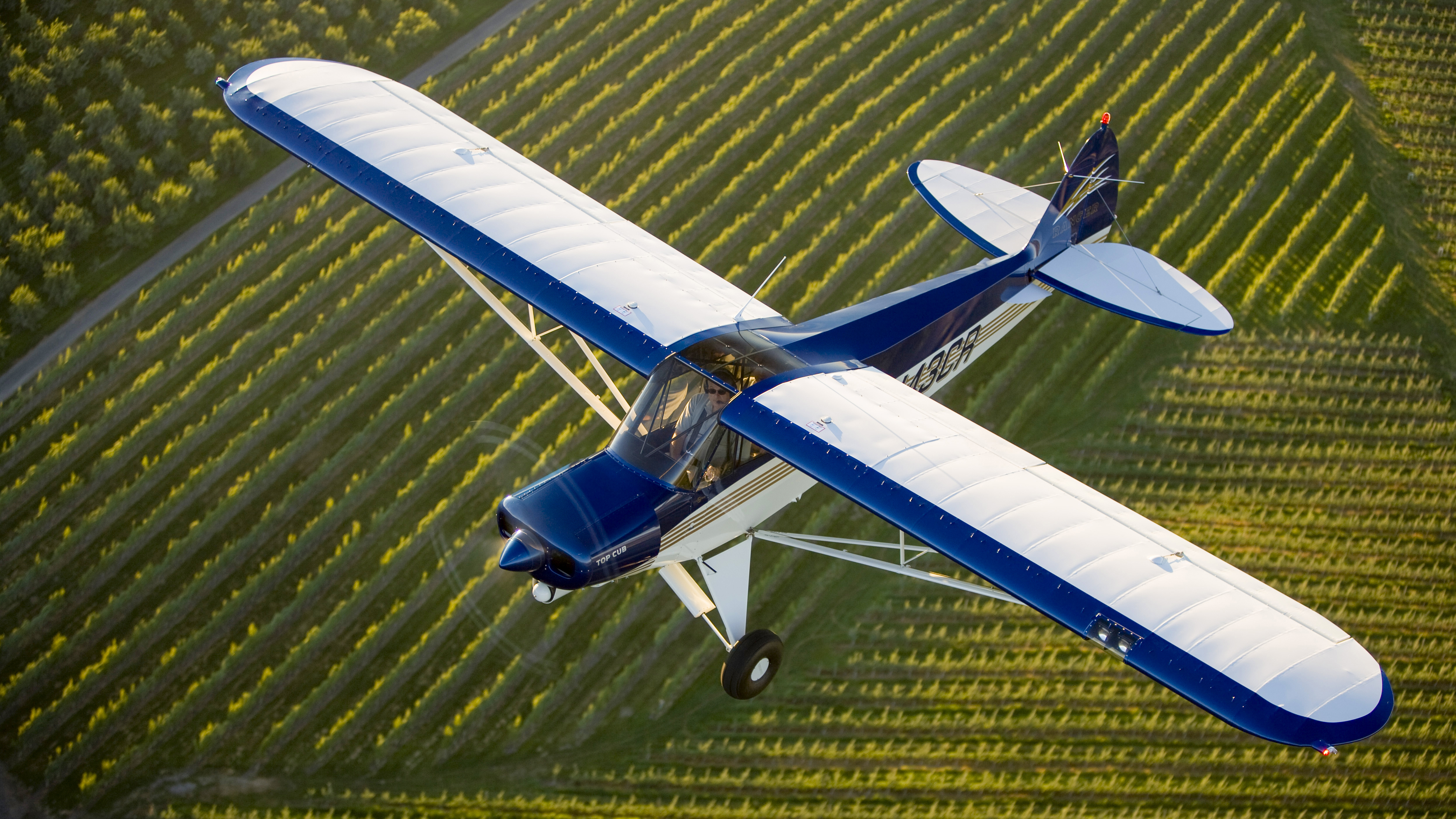

CubCrafters Top Cub

Overview

• The CubCrafters Top Cub is a modern bush airplane inspired by the Piper Super Cub, featuring a 180 hp Lycoming O-360 engine, advanced avionics, and built for short takeoff and landings performance. Blending classic taildragger heritage with advanced materials and systems, it delivers unmatched performance in remote and demanding environments.

  CubCrafters Top Cub

Specifications

• Powerplant

  Lycoming O-360-C4P, 180 hp

• Propellers

  Sensenich 76-inch metal propeller

• Length

  23 ft 6 in

• Height

  8 ft 5 in

• Wingspan

  35 ft 3 in

• Wing Area

  178 sq ft

• Wing loading

• Power loading

• Cabin Width

  24 in

• Empty Weight

  1,200 lb

• Maximum gross weight

  2,300 lb

• Useful load

  1,000 lb

• Payload with full fuel

• Fuel capacity

  50 gal

• Baggage capacity

Performance

• Takeoff distance ground roll

  270 ft

• Takeoff distance over 50-ft obstacle

• Rate of climb sea level

  800 fpm

• Service ceiling

• Landing distance over 50-ft obstacle

• Landing distance ground roll

  400 ft

• Cruise speed/endurance w/45-min rsv, std fuel (fuel consumption, ea engine) @ 75% power, best economy

• Range

Limiting and Recommended Airspeeds

• V_X

• V_Y

• V_NE

• V_S1

• V_SO

For more information, contact CubCrafters at or via https://cubcrafters.com/topcub

All specifications are based on manufacturer's calculations. All performance figures are based on standard day, standard atmosphere, sea level, gross weight conditions unless otherwise noted.
