For years, circling approaches in the United States have been more difficult to execute while providing less safety margin, relative to those in most of the rest of the world. After years of deliberation, the FAA is finally bringing some needed changes to the protection afforded to circling aircraft.

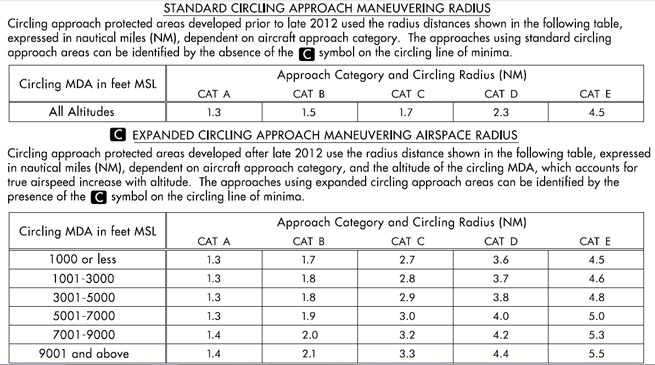

New terminal instrument procedures with expanded circling areas are identified on FAA AeroNav charts with a “C” in a black box.

For years, circling approaches in the United States have been more difficult to execute while providing less safety margin, relative to those in most of the rest of the world. After years of deliberation, the FAA is finally bringing some needed changes to the protection afforded to circling aircraft.

The terminal instrument procedures (TERPS) guidance that the FAA uses to create approaches has previously protected a much smaller circle-to-land maneuvering area than that created by the “procedures for air navigation services—aircraft operations” (PANS-OPS) guidance used in most of the world. Consider, for example, a light jet with a final approach speed of 101 KIAS at maximum landing weight. The landing speed of 101 KIAS places the aircraft squarely in category B using both TERPS and PANS-OPS guidance. However, because of the increased stall speed caused by banking maneuvers, the manufacturer specifies that circling procedures are to be flown at 130 KIAS until established on final to the landing runway.

Under TERPS, an aircraft can maneuver only up to 120 KIAS and still use Category B minimums, so for circling approaches this jet must use the next category up. Using Category C, the aircraft can maneuver to a maximum speed of 140 KIAS, and until recently would be protected from terrain at minimum descent altitude (MDA) while circling within a bubble that extends 1.7 nm from all runways on the airport.

Contrast this with PANS-OPS, where a Category B aircraft is permitted to operate up to 135 KIAS while circling. Even as our light jet is allowed to operate in a slower approach category, it is afforded a larger radius for maneuvering—2.66 nm. The new TERPS guidance for circling approaches enlarges the circling area for all aircraft, aligning it more closely with PANS-OPS. Category C aircraft will see the bubble radius increase from 1.7 nm to a minimum of 2.7 nm at sea level, and to a maximum of 3.3 nm for a high-altitude MDA.

The increase in maneuvering radius with altitude is caused by the effect of increased altitude on true airspeed and turn radius. Consider our light jet conducting circling approaches into Portsmouth, New Hampshire, and Aspen, Colorado. At Portsmouth’s 560-foot-msl MDA, 130 KIAS will give 130 KTAS, and a turn diameter of 1.1 nm. At Aspen, with a nosebleed MDA of 10,220 feet msl, the same indicated speed will have the airplane flying 156 KTAS, and the turn diameter will increase to 1.5 nm.

For a while, procedures that were designed under the old TERPS will co-exist with those complying with the new TERPS. Pilots using FAA AeroNav charts will be able to identify the new TERPS procedures with an expanded circling area by the presence of a “C” in a black box (see image, previous page) in the circling minimums section. If you see the “C,” you will need to consult a chart in the front of the terminal procedures booklet to look up the circling radius, as it varies with the msl value of the MDA. The FAA has said that anytime an airport has an approach amended after June 2013, all the approaches at the airport will be reevaluated with the new circling radii. Expect to see circling minimums increase, in some cases dramatically, as obstacles that were previously outside the maneuvering area now drive MDAs up.
