IFR Fix: Keene expectationsIFR Fix: Keene expectations

Click to view the full PDF.

It has been a long time since you flew the ILS or LOC RWY 2 approach to Dillant-Hopkins Airport in Keene, New Hampshire. You are expecting the approach on today’s proficiency flight—and based on your arrival from the east, you expect clearance via the no-procedure-turn transition from the 323-degree radial of the Gardner VOR to the localizer course.

Your preparedness to fly this specific variation of the approach is a result of your hour-long preflight ground review, which your instructor opened by sliding the approach plate across the table in the restaurant café and asking you to list the various ways the approach could be flown.

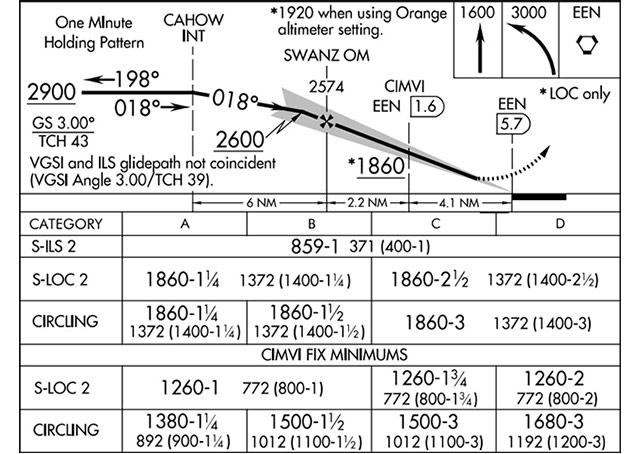

A glance at the minimums section of the plate presents the options: You can fly the approach as a precision ILS, or as a localizer-only procedure. If flown localizer-only, you can fly it straight-in or as a circle-to-land procedure, with several variations on that theme possible.

There’s also the CIMVI factor: Aircraft equipped to identify the CIMVI fix at 1.7 nm from the Keene VOR can avail themselves of lower minimums on localizer-only approaches, whether straight-in or circling. Using CIMVI minimums yields 600 additional feet of descent on the straight-in localizer-only approach for Category A and B aircraft—significantly improving chances of getting down in bad weather.

But scratch the CIMVI options for now. In your briefing you also reviewed notams including this one: 12/004 - NAV VORTAC U/S. 12 DEC 12:43 2014 UNTIL 31 JAN 20:00 2015 ESTIMATED. CREATED:12 DEC 12:43 2014.

The Keene VOR’s unavailability exerts great effect on the local IFR infrastructure, for example by rendering numerous published departure procedures not authorized, "except for aircraft equipped with suitable RNAV system with GPS." Also, the straightforward three-step route to holding after a missed approach is based on the non-functional navaid. What’s the alternative miss?

Still another notam gives the updated—and more complex—missed approach procedure: "CLIMB TO 1600 THEN CLIMBING LEFT TURN TO 3200 HEADING 190 AND GDM VOR/DME R-323 TO CAHOW INT/GDM VOR/DME 13.02 DME AND HOLD."

How many ways are there to identify CAHOW? Which method would you use with the VOR out of service?

The Keene VOR isn’t the primary navaid for the approach, but it is clear from your preflight prep that the navaid’s unavailability is an essential information item for your flight.
