Aircraft Maintenance: Sustaining your strobesAircraft Maintenance: Sustaining your strobes

Almost every part of an aircraft will suffer from lack of use, but some parts are more susceptible than others. Strobes are unique in that regard because the simple act of using them serves to strengthen them and maintain their reliability. In order to understand why this is true, we must first understand the basic principles of strobe system design.

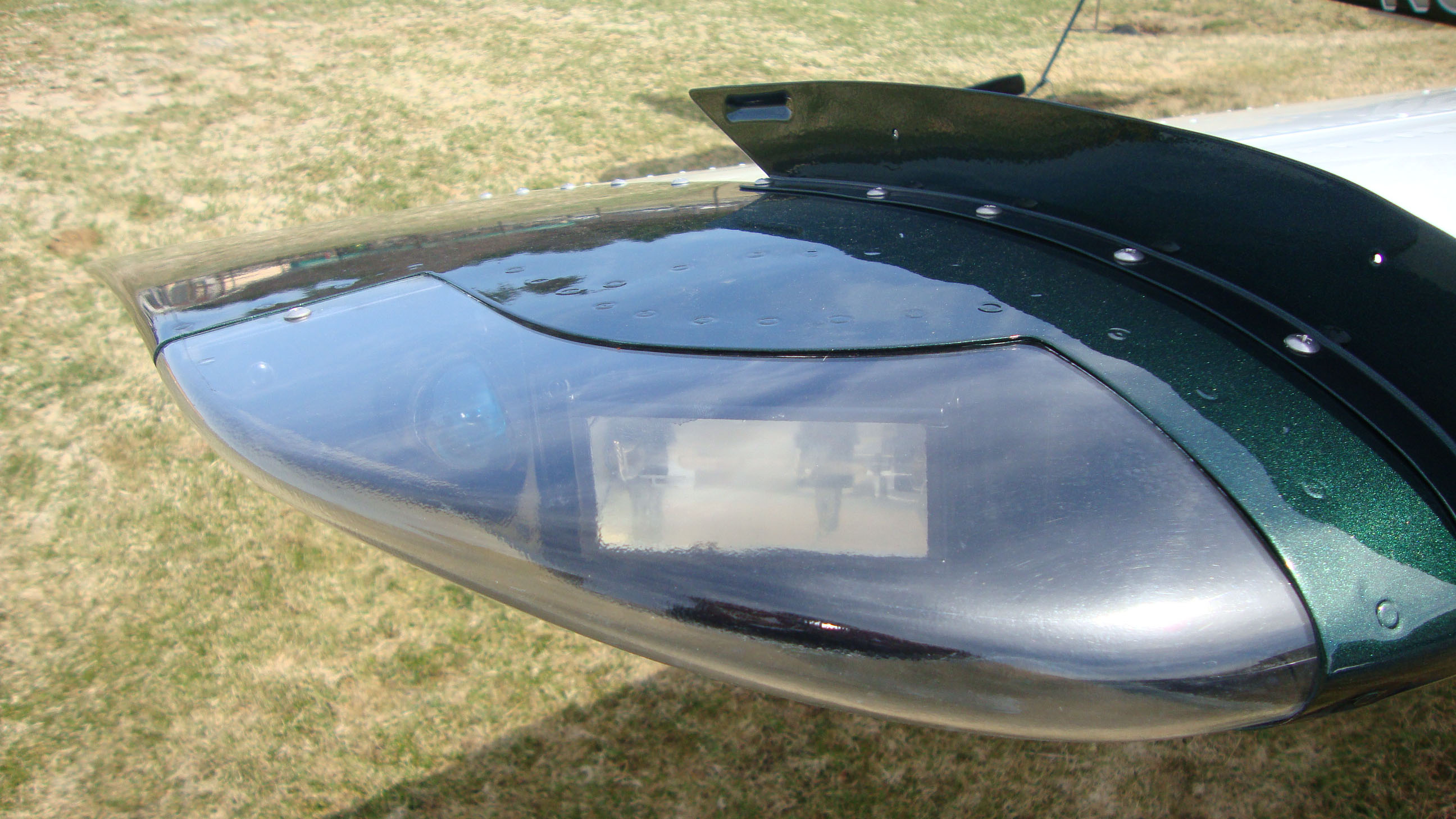

Photo courtesy of Jeff Simon

A strobe light is a high-energy, capacitive discharge device that consists of a power supply/trigger and a Xenon gas flash tube. The power supply controls the conversion of the relatively low voltage of the aircraft bus into the high-level output voltage (350-550 volts) required to trigger the flash tube. Power is applied across the tube and a trigger voltage is pulsed to the outside surface of the tube containing the xenon gas. The trigger voltage causes the Xenon gas to ionize, which in turn allows the gas to conduct the high voltage and…voila! You get a blinding flash of light that will have you seeing spots for an hour or so, should you have been looking directly at the bulb.

The heart of most strobe system power supplies is the capacitor (or capacitors). Capacitors are used to build up and store the energy required to power the bulb because of the capacitor’s unique ability to release the stored energy very quickly (hence the quick flash). However, if capacitors have an Achilles Heel, it is that they quickly degrade from lack of use. The act of charging and discharging is healthy for a capacitor. But when they are left idle, they begin to breakdown internally and lose the surface coating of the foil layers inside. Those foil layers and the coatings on them are the essence of what makes the charging and discharging cycles work. As the foil layers in the capacitor degrade, the capacitor becomes less efficient and the strobes can become unreliable. If they are allowed to degrade too much from lack of use, the capacitor will not be able to store and release the energy properly, eventually causing it to overheat and fail.

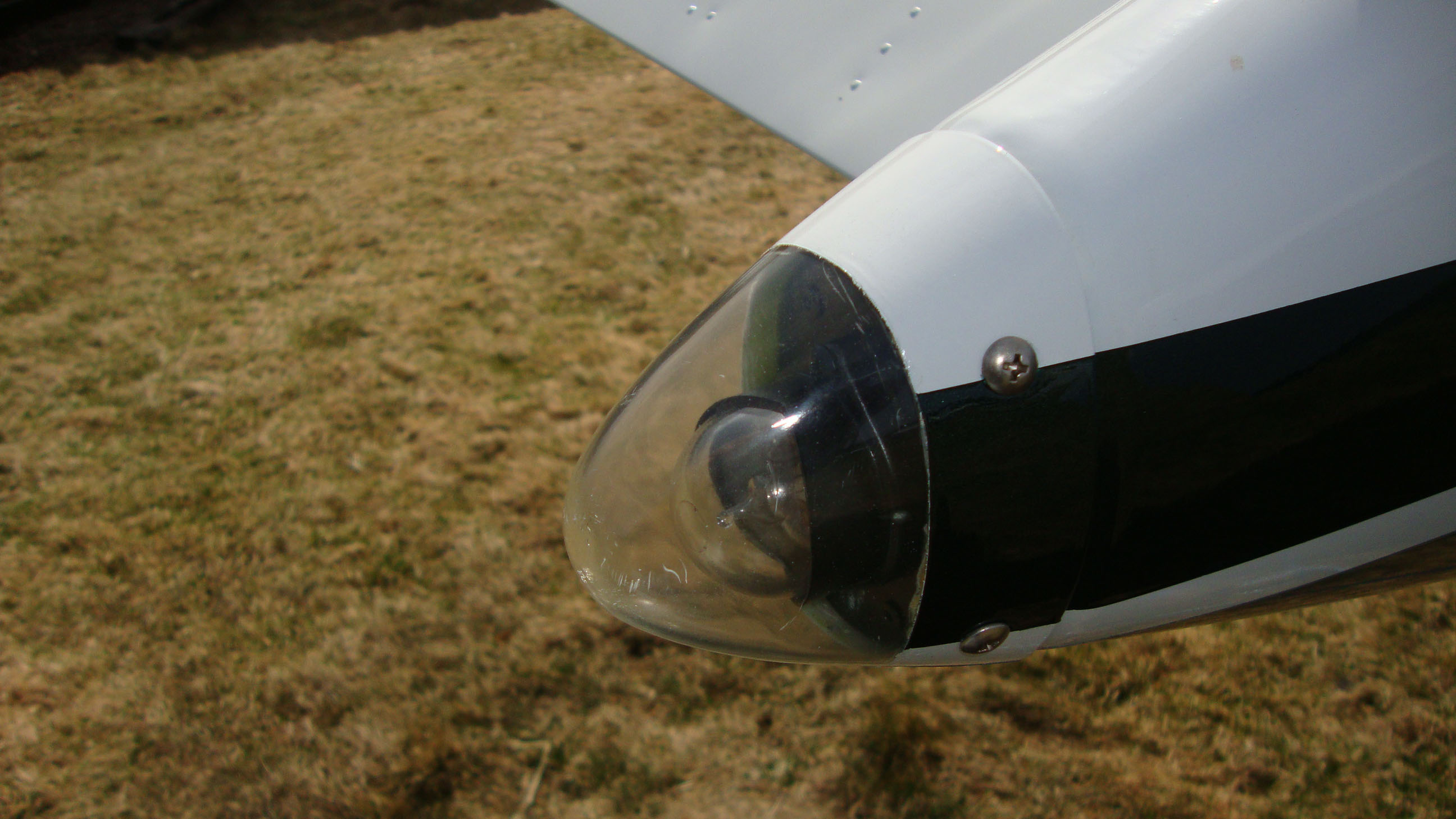

Photo courtesy of Jeff Simon

If your strobes are not working properly, the simplest approach to troubleshooting is to start at the ends of the system and work inward. Begin by checking to ensure that the power supply is getting the proper voltage at the input, and that all power and ground connections are secure. Then head out to the strobe tubes and check their connections. If all looks well, see if there is a “known good” tube that you can substitute to rule out the tube as the source of the failure.

Aging strobe tubes are very sensitive to voltage and even to light. It’s not uncommon to see strange behavior such as strobes that work while flying (when the aircraft bus voltage is high), but stop working during taxi (where the aircraft bus voltage could be lower). It’s also not uncommon to see failing strobe tubes that will work in direct sunlight, but not in the dark. And, finally, failing strobe tubes will sometimes fire a few times then simply glow, a failure mode known as “self-ionization.”

All of this can be prevented with the simple act of using the strobes regularly. “Regularly” means at least 10 to 15 minutes per week of sustained use (the more frequent the use, the better). Better yet, simply add “maintaining strobe health” to your list of reasons that you need to get out there and fly every week. As long as turning on the strobes is part of your pre-takeoff checklist, you can combine your “strobe maintenance” flights with your “mental maintenance” flights and the entire world will begin to look a little brighter. Happy flying!

Jeff Simon

Jeff Simon

Jeff Simon is an A&P mechanic, pilot, and aircraft owner. He has spent the last 14 years promoting owner-assisted aircraft maintenance as a columnist for several major aviation publications and through his how-to DVD series: The Educated Owner. Jeff is also the creator of SocialFlight, the free mobile app and website that maps over 20,000 aviation events, $100 hamburgers, and educational aviation videos. Free apps available for iPhone, iPad and Android, and on the Web at www.SocialFlight.com.
